4 Things to Consider when Selecting Hoses for your Tire Curing Press

Are you in the market for a new tire press hose? In this article, we discuss four things you should know when selecting hoses for your tire curing press.

1. Type of Hose

When deciding on the type of hose you need for the tire curing press to work properly, you will need to know the following information:

  • Temperature – We know this application will involve steam so we need a hose that can withstand high temperature conditions
  • Pressure – We will need a hose that can withstand 250 PSI
  • Media – Typically the media is steam, nitrogen and water

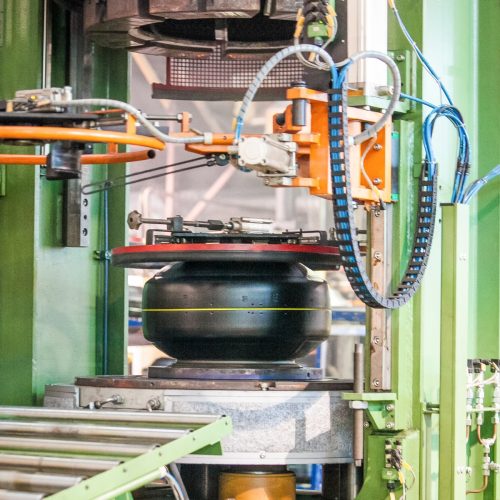

Tire Curing Press

2. Installation Design

We need to make sure that when the hoses are installed they are the proper length. We do not want to exceed the bend radius of the hose and we want it to be a comfortable U-shape configuration.

There should also not be any extreme flexing at the end connections where a leak can form at the fittings.

3. End Fittings

The best way to avoid leaking end fittings with high pressures and temperatures are by using Double Ferrule Tube Fittings. The hoses should be installed with Tube Stubs and connected to Double Ferrule Tube Fittings.

4. Protective Coverings

It is important to keep your operators safe while these hoses are in service. The best way to do this is with a covering that can withstand the heat coming from the hose. This covering is typically made of silicone that can withstand extreme temperatures.

In closing, it is important to make sure you have the right hose and that it is installed in the right configuration in order to keep your tire mold process running smoothly and your operators safe.
