Differential Pressure Transmitters

Differential Pressure Transmitters

Reliable industrial pressure measuring equipment designed to measure, monitor and analyze the difference in pressure.

Differential Pressure Transmitter PAD

High Performance DP Transmitters

The Kobold Differential Pressure Transmitter model PAD is a micro processor-based high performance transmitter, which has flexible pressure calibration and output, automatic compensation of ambient temperature and process variable, configuration of various parameters and communication with HART® protocol. The application is very various, as measuring pressure, flow and level by application method. All data of sensor is to be input, modified and stored in EEPROM.

As an option the Kobold Pressure Transmitter is also available as a flow meter. This flowmeter model PAD-F has added the totalizing function in the PAD transmitter. It is available to check the flow rate and totalizing flow. It measures the flow rate by using differential pressure without compensation of temperature and static pressure. The shape of the PAD-F is the same as the standard device and it is only the terminal block which is different since there are two more terminals for the read-out of the pulse output.

Features & Benefits

Superior performance
– High reference accuracy: +/- 0.075% of calibrated span (optional: +/- 0.04% of calibrated span)
– Long-term stability (0.125$ URL for 3 years)
– High rangeability (100:1) for range 4-0

Flexibility
– Data configuration with HART® configurator
– Zero point adjustment

Reliability
– Continuous self-diagnostic function
-Automatic ambient temperature compensation
– EEPROM write protection
– Fail-mode process function
– CE EMC conformity standards (EN 50081-2, EN 50082-2)

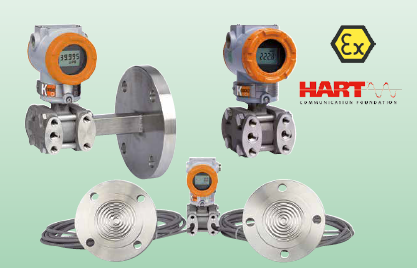

dp-transmitter-hart
